Bosch
GLL 5-50 X Line Laser

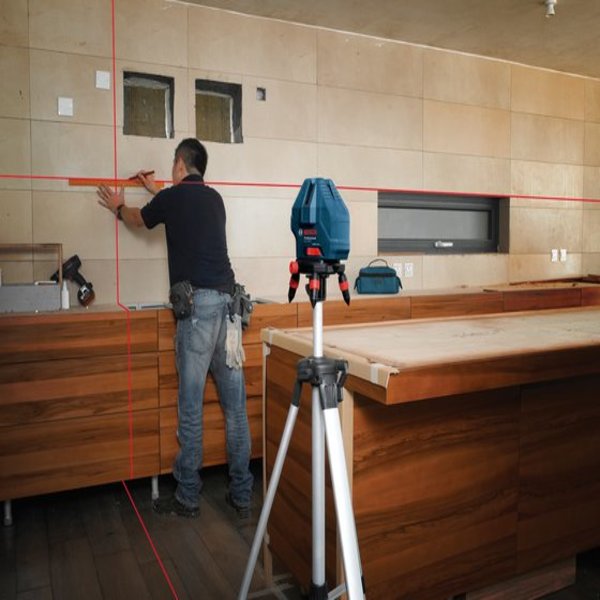

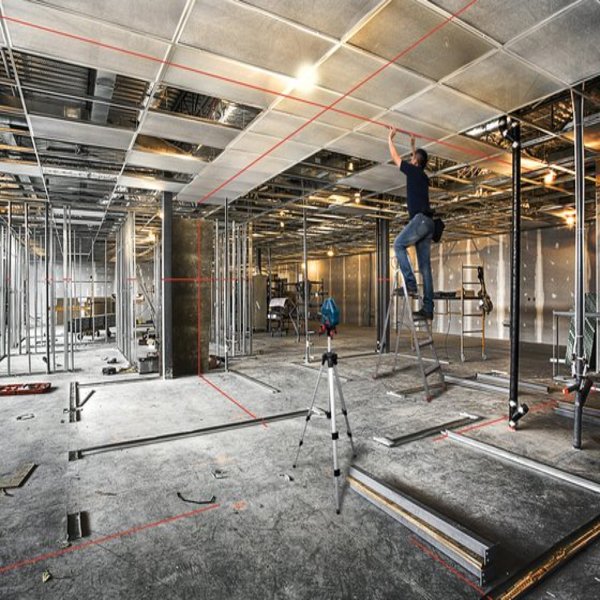

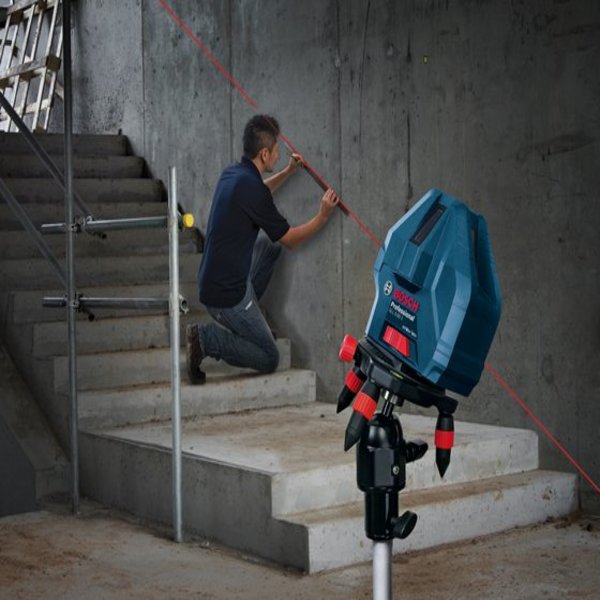

Better line visibility for increased work efficiency in everyday interior levelling jobs
Technical data
| Additional data | |
|---|---|
| Working range with receiver, value | 50 m |
| Accuracy | Horizontal laser line: ± 0.2 mm/m* ; Vertical laser lines: ± 0.3 mm/m* (*plus use-dependent deviation) |
| Working range | 15 m |
| Working range with receiver | 50 m |
| Laser diode | 630 – 650 nm, < 1mW |
| Operating temperature | -10 – 45 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range of laser points, max. | 5 m (bottom) |
| Self-levelling range | ± 3° |
| Levelling time | 4 s |
| Power supply | 4 x 1.5 V LR6 (AA) |
| Operating time (max.) | 24 h |
| Tripod thread | 5/8" |
| Weight, approx. | 0.5 kg |
| Colour of laser line | red |
| Color of plumb points | red |
| Plumb point accuracy | ± 0.7 mm/m* (*plus use-dependent deviation) |
| Working range, value | 15 m |
